Description
Fully automatic CIP cleaner can clean and sterilize in a closed method without disassembly. It’s mainly used in the biological fermentation, pharmaceutical industry. It can also be used in the beverage, dairy, juice, beer, sugar manufacture industries.

Automatic cleaning
CIP system is a central integrated system. With conductivity gauge and PLC control system, it can automatically clean in line.

Fast Cleaning
CIP system can clean more than two areas simultaneously and can even produce at the same time. Thus, the cleaning time is greatly shortened.

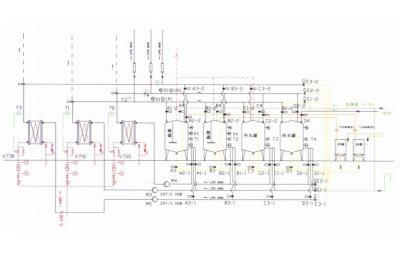

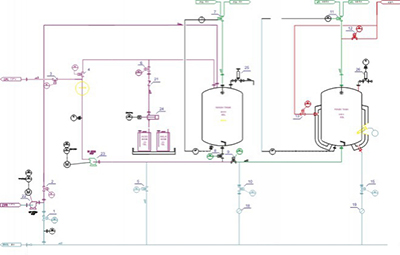

Components

• Injection water tank
• CIP tank
• Plate heat exchanger
• Piple filters and distributors
• Feed pump, return pump, booster pump, pH meter
• Temperature controller, level sensors, conductivity gauge
• Control panel for the programmed control by PLC and control cabinet.
• Pipes and valves

Specifications
50L-5000L

• Raw material
  In order to meet the GMP and FDA standard, the 316L and 304 stainless steel is adopted.
• Surface treatment
  The interior surface of tank is electropolishing finish with Ra≤0.4μm while the outer surface is mirror finish or matt finish.
• Control system
  PLC system can be controlled using touch screen and can test, record and print the cleaning time, flow rate and conductivity of every process. It can also help make the lotion’s temperature and concentration is uniform during the cleaning.
• Tank for cleaning
  NJR can match different cleaning tank according to the characteristic of cleaning agent.
  ①Super acid tank: use acid cleaner to remove calcium salt, mineral oil and other remains.
  ②Super acid tank: use the saponification of base cleaner to remove fat and protein
  ③Sterile tank: the bactericidal agent is suitable for all microorganisms. It’s nontoxic after dilution and will not be influence by the water hardness.
• Circulation outside
  It can greatly reduce the energy cost.
• backwater system
  It can reduce the amount of water used by CIP system
• Plate heat exchanger
  It can heat the cleaner.
• Feed pump
  It transports the cleaner through the pipes and equipment.

• GMP
• TSG-2016 Supervision Regulation on Safety Technology for Stationary Pressure Vessel
• ISO2037
• FDA
• GB150.1～150.4-2011 Pressure Vessel
