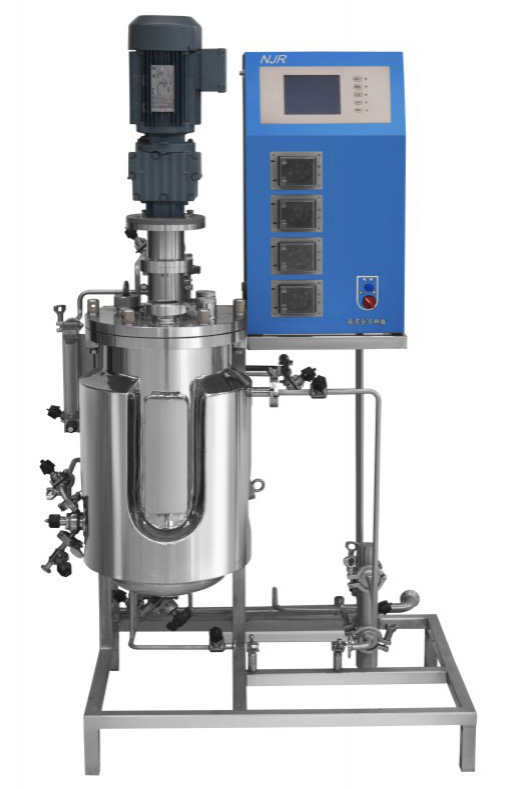

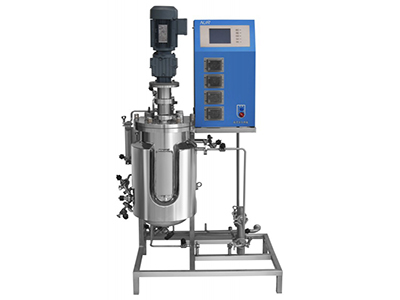

The fermentation module is able to compound, ferment, harvest and ultra-filtrate the culture medium. No matter which purpose is the equipment for, like research, pilot testing or industrialized production, NJR can provide equipment depends on your condition with volume ranging from 5L to 3000L.

In order to meet the GMP and FDA requirements, NJR adopts 316L and 304 stainless steel to make the tank body and pipes of fermentation module. The interior of fermentation tank is electropolishing finished with Ra≤0.4μm. The outer surface is mirror finish or matt finish.

• screen the composition of culture medium used for fermentation
• optimize the parameters of fermentation processing
• test the production procedure and bacteria strain
• Depends on the client’s URS, NJR provides with one-stop solution and necessary equipment including:
• fermentation tank body
• mixer and its driver
• SIP(sanitize in place) system
• testing instruments
• control system and processing analysis control software

By using PLC control system, all the operation can be finished just a touch on the liquid crystal touch panel which is every convenient to operate. At the same time, NJR offers all kinds of instruments to test important production parameters. These instruments are all famous brands worldwide like Hamilton and Rainin Liquidator. Depending on the need of processing, the fermentation module can have the following functions:

• automatic test and control on the air flow rate, tank pressure, liquid level and temperature.
• in space test for the pH and gas drain condition
• test and control on O₂ and CO₂
