Stainless Steel Mixing and Blending Tank, ASME Mixing Vessel

  • Stainless Steel Mixing Tank
  • Mechanical stirrer tankMechanical stirrer tank
  • Magnetic stirrer tankMagnetic stirrer tank

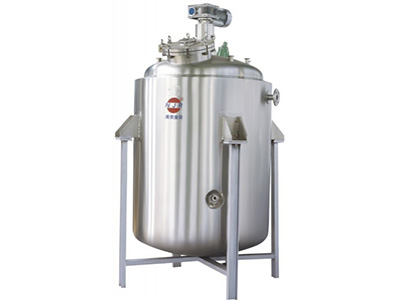

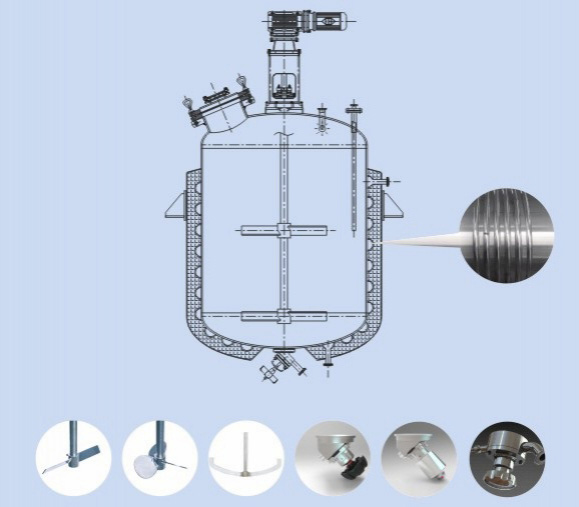

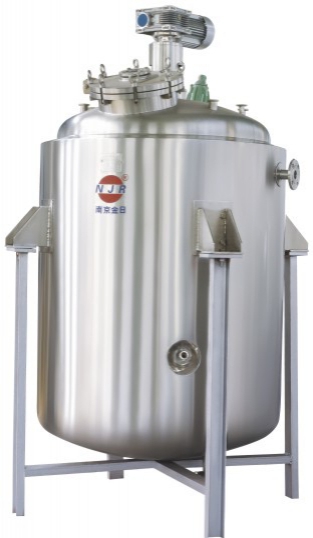

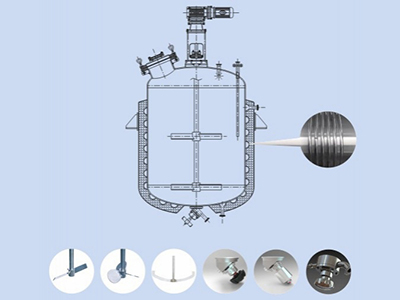

The mixing tank is an ideal equipment used for liquid mixing, especially suitable for the purification of pharmaceutical products with uniform concentration in the tank. NJR provides stainless steel mechanical stirrer tank and magnetic stirrer tank.

Features of stainless steel mixing tank
  • Adopt 316L or 304 stainless steel to make the tank with interior precision polish finish while the outer surface is all-welding stainless steel plate.
  • There is hydrophobic filter used for gas filtration with pore size of 0.2μm

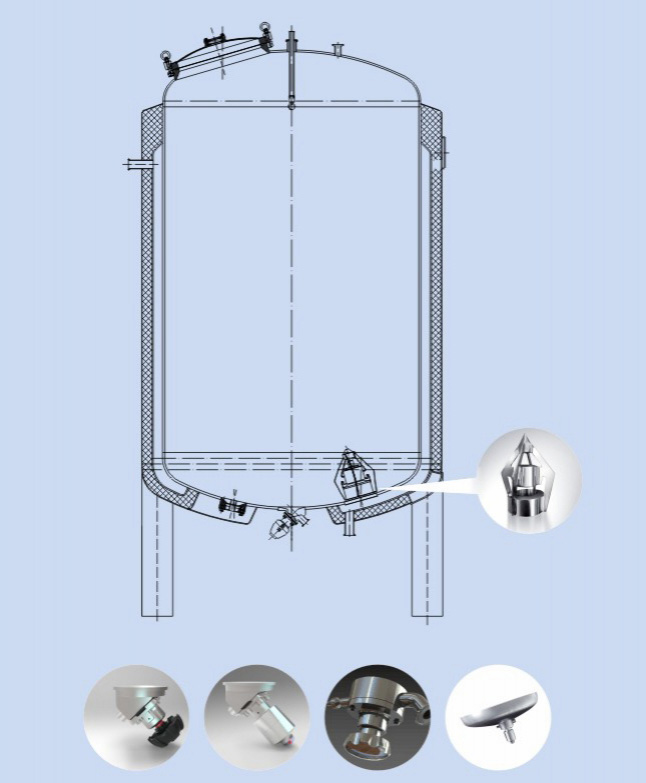

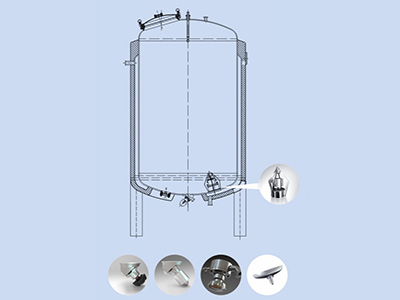

  • With the magnetic stirrer to mix on a low level near the bottom of the tank. It can use the driver gear outside the tank to drive the passive gear to rotate in the magnetic field so that there is no friction between the gear and bearing. Hence, it avoids the pollution caused by the mechanical stirrer.
Common specifications
Specification (L) Inner tank diameter(mm) Jacket diameter(mm) Insulating layer diameter (mm) Motor power(kW) Stirring speed(rpm)
30 300 350 450 0.6-1.1 60-120
50 400 450 550 0.6-1.1 60-120
100 500 550 650 1.1-1.5 60-120
150 550 600 700 2.2 60-120
200 600 650 750 2.2 60-120
300 700 750 850 2.2 60-120
500 800 900 1000 2.2 60-120
800 1000 1100 1200 4 60-120
1000 1000 1100 1200 4 60-120
1500 1100 1200 1300 4 60-120
2000 1250 1350 1450 4 60-120
2500 1400 1500 1600 7.5 90-120
3000 1500 1600 1700 7.5 90-120
3500 1400 1500 1600 7.5 90-120
4000 1600 1700 1800 7.5 60-120
5000 1900 2000 2100 7.5 60-120
6000 1900 2000 2100 15 100-120
8000 2000 2100 2200 15 100-120
