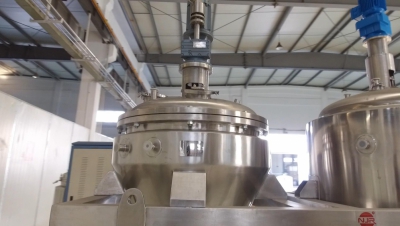

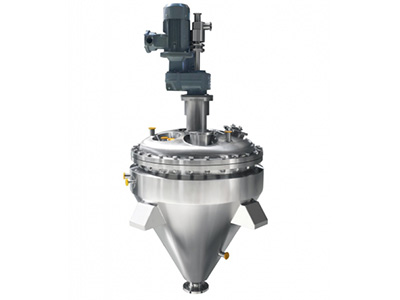

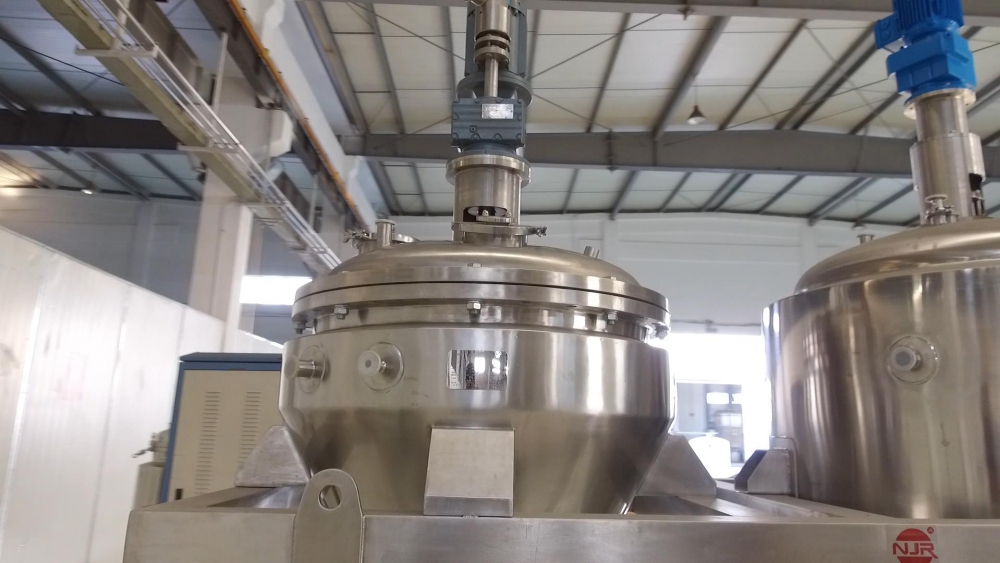

Conical Screw Vacuum Dryer

Conical Screw Vacuum Dryer

The pharma grade conical vacuum dryer is a vacuum dryer using conical heat system and central agitating shaft heat system to dry materials quickly. Besides, due to the closed design and indirect heat mode, the drying mixing tank is suitable for drying of some products with special characteristic, which is difficult to use the common drying method, like the wet crystal active component or products sensitive to mechanical force and high temperature, products easy to oxidative decompose and flammable and explosive powder or products with flammable liquid and so on.

Advantages

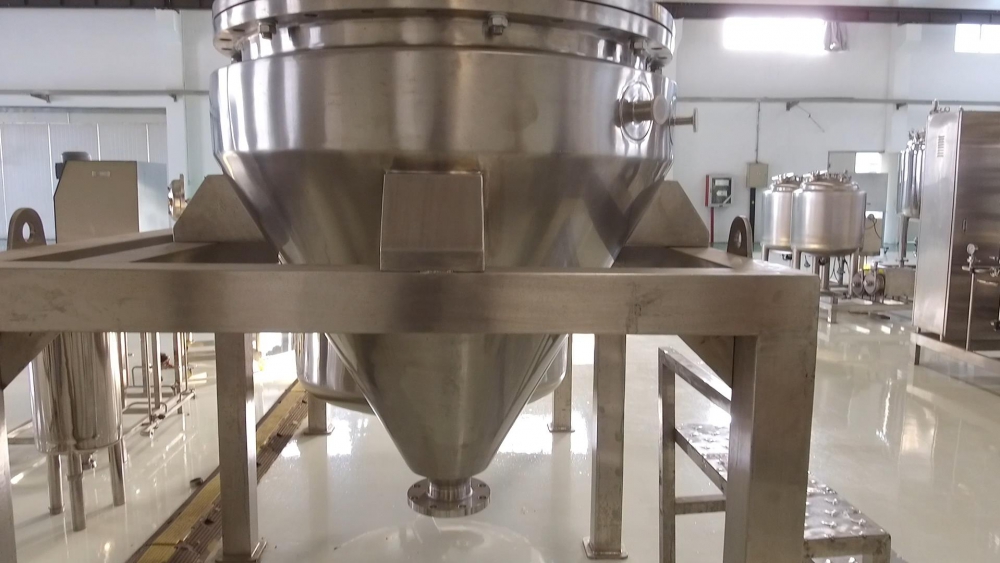

  • The dryer is conical so that it’s convenient to drain the water. It equips with fittings to spread vapor and deposit the ash produced during the drying.
  • The inner mixing screw shaft can promote the mixing process with a driver outside. The screw shaft is conical so that it can decrease the mixing resistance and realize gentle processing of material to make sure the high quality of products.
  • Adjustable mixing speed to accommodate all kinds of applications.
  • There many kinds of shaft seals you can opt depending on your need such as the PTFE radial shaft seals, complex dynamic seals, cartridge seal or seal modules.
  • Conical Screw Vacuum Dryer
  • Conical Screw Vacuum Dryer
  • Conical Screw Vacuum Dryer
Details

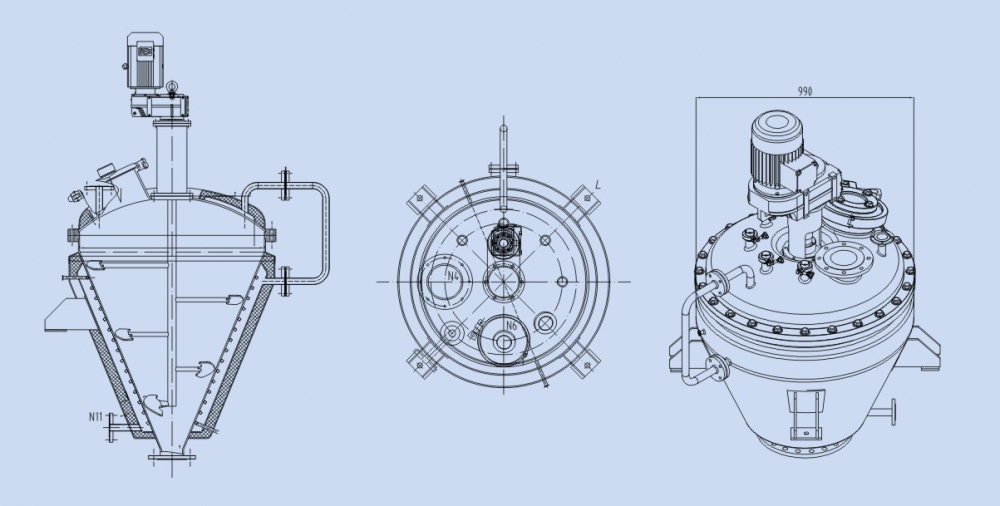

Conical Screw Vacuum Dryer
  • Baffle: conical screw baffle to achieve circled soft mixing.

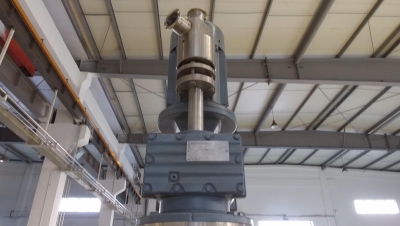

  • Agitating shaft: central screw mixing shaft with heating function.
  • Dust collector: with heating function and separated with the pressure washing.
  • Vacuum system: modular vacuum system to recycle condensate and solvent.
  • Motor: power ranging from 1.5kW to 15kW, which is suitable for explosive atmosphere.
  • Hemisphere valve: as the inlet of material
  • In line cleaner and water supply system
  • Hygienic grade sampler
  • Seals system
Common specifications
Model Total volume(L) Power(kW) Max. rotation speed(rpm) Outline size(mm) Installation dimensions (mm) Net weight (kg)
DZ600 100 1.5 63 700×700×1600 φ640 500
DZ700 150 1.5 66 850×850×1900 φ750 600
DZ1000 450 3 67 1200×1200×2525 φ1100 900
DZ1200A 700 4 64 1300×1300×2850 φ1200 1300
DZ1200B 900 4 64 1300×1300×3000 φ1200 1500
DZ1400A 1200 5.5 65 1640×1640×3200 φ1500 1900
DZ1400B 1500 7.5 65 1640×1640×3200 φ1500 2200
DZ1500 1800 7.5 42 1740×1740×3400 φ1600 2500
DZ1800 2800 15 55 2280×2280×4000 φ2100 3600
