Pharmaceutical Processing Stainless Steel Bioreactors

  • Stainless Steel Bioreactors
  • Stainless Steel Bioreactors

Stainless Steel Vessels and Reactor can use mixer to mix liquid, solid and other materials to promote the chemical reaction under specific temperature and pressure. They are widely used in compounding and production of various of pharmaceutical preparation.

Since there is thermal effect during the compounding and mixing in pressure vessel, heat exchangers are usually needed to input heat or remove heat. The display and control of temperature can be designed according to the need of clients.

Stainless Steel Bioreactors

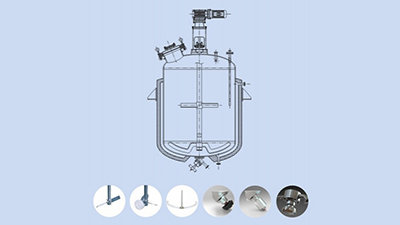

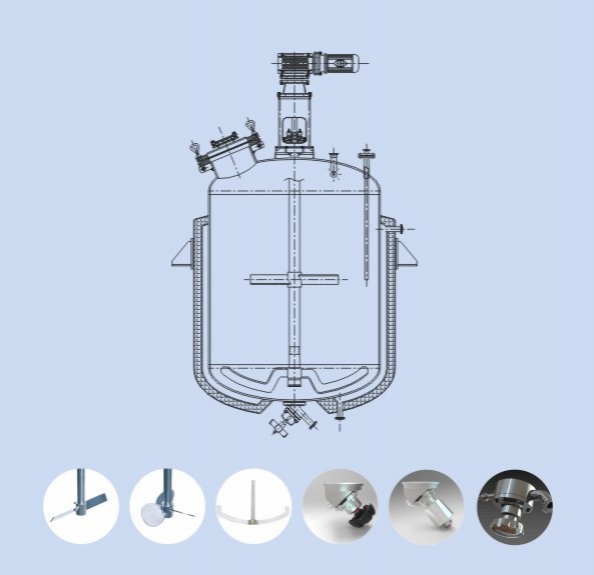

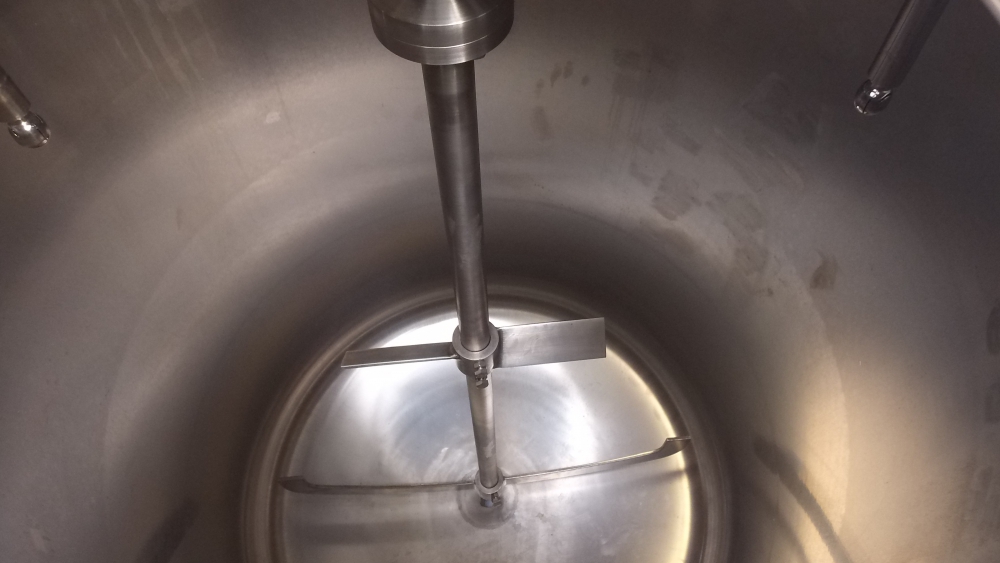

Baffles can be anchor, gate or pitch blade turbine.

Stainless Steel Bioreactors

The mixing speed is controlled by the frequency converter to make sure all materials can be uniformly mixed in fixed time.

Stainless Steel Bioreactors

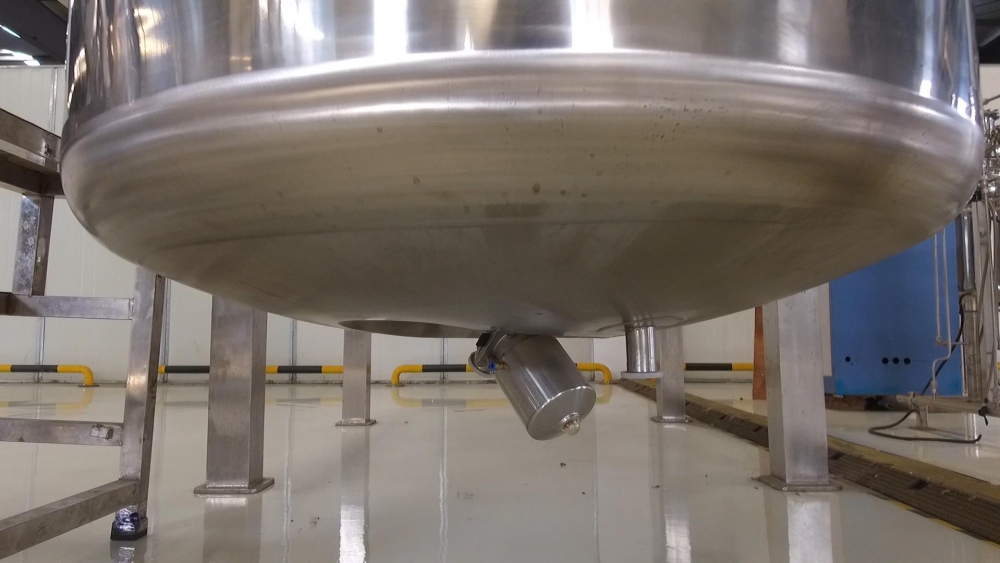

Equip with sterile tank bottom valve for convenient discharge and can prevent materials remained and secondary pollution.

Specifications
Some common specifications of stainless steel pharmaceutical pressure vessel are shown below so that you can choose according to your condition. The details should be designed based on your production condition. NJR is willing to discuss every detail with you.

Volume (L) Inner tank diameter(mm) Jacket diameter(mm) Insulating layer diameter(mm) Motor power(kW) Stirring speed(rpm)
30 300 350 450 0.6-1.1 60-120
50 400 450 550 0.6-1.1 60-120
100 500 550 650 1.1-1.5 60-120
150 550 600 700 2.2 60-120
200 600 650 750 2.2 60-120
300 700 750 850 2.2 60-120
500 800 900 1000 2.2 60-120
800 1000 1100 1200 4 60-120
1000 1000 1100 1200 4 60-120
1500 1100 1200 1300 4 60-120
2000 1250 1350 1450 4 60-120
2500 1400 1500 1600 7.5 90-120
3000 1500 1600 1700 7.5 90-120
3500 1400 1500 1600 7.5 90-120
4000 1600 1700 1800 7.5 60-120
5000 1900 2000 2100 7.5 60-120
6000 1900 2000 2100 15 100-120
8000 2000 2100 2200 15 100-120
