Pharma Formulation Tanks for Fat Emulsion Intravenous
The key process to formulate the fat emulsion intravenous is emulsification. One of the classic cases NJR did is shown below for your reference. If you have the needs to formulate the fat emulsion, please contact us. NJR will customize the best suitable solution for you.
Project time: 2015
Address: Hubei province
Product: fat emulsion
-

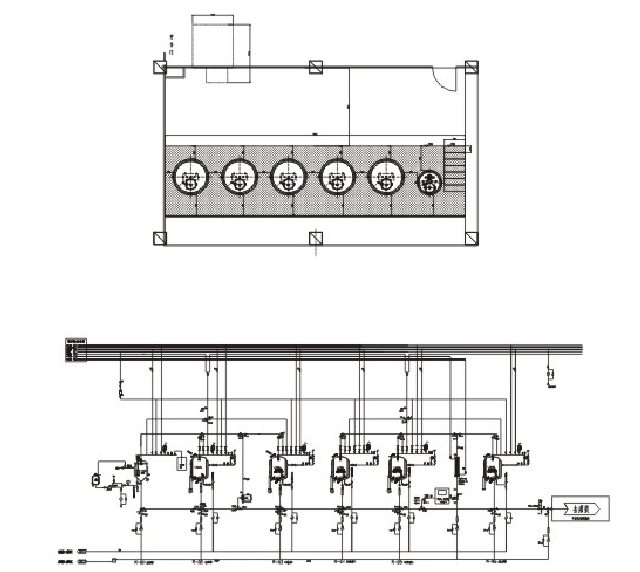

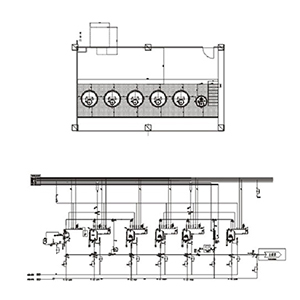

Graphic design plan -

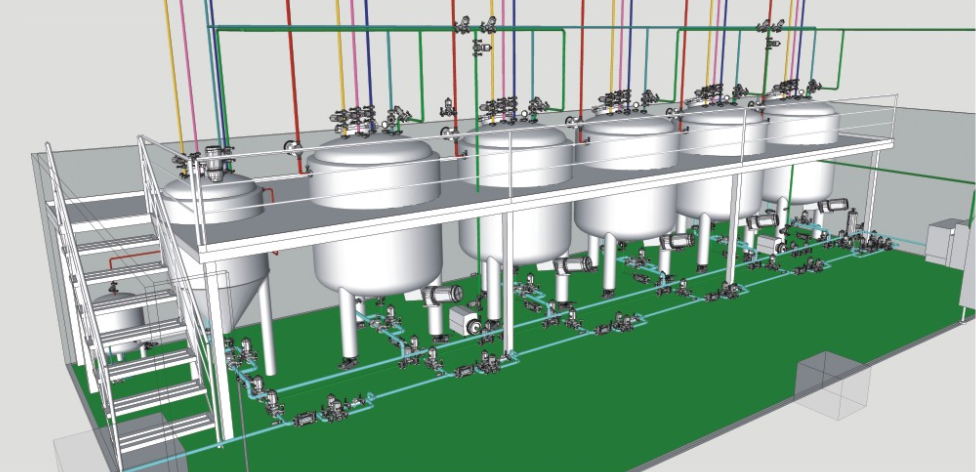

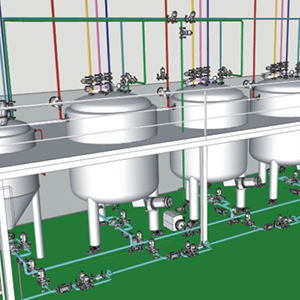

3D design -

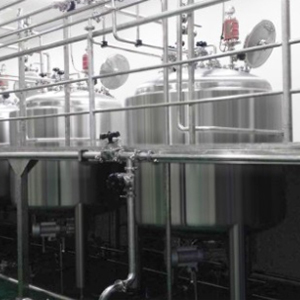

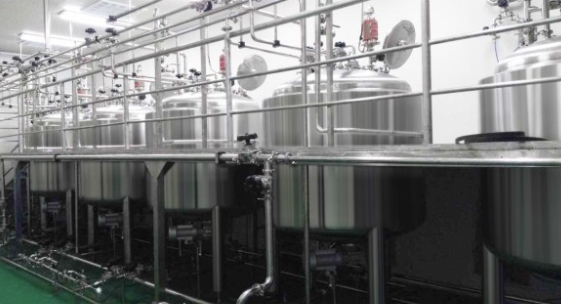

Working scene
URS
The controlled object is a whole system including six vessels, which adopt S7-300 system and are controlled in split screens. The six vessels are:
- one 360L oil phase vessel
- one 1200L aqueous phase vessel
- one 1200L coarse emulsion vessel
- two 1200L homogenization vessels
- one 1200L storage tank
- In order to achieve a better emulsification, the reaction vessels are equipped with high shear mixer and high-pressure homogenization vessels.
- Since the high temperature caused during the working of high-pressure homogenizers has a bad impact on the fat emulsion, NJR furnishes the piping system with heat exchanger.
- Considering the fat is difficult to clean, this fat emulsion intravenous manufacturing system is equipped with fully automatic CIP cleaners.
