Pharmaceutical IV Infusion Compounding System
During the production of Large Volume Parenteral (LVP), there are two key process: the control on the composition of materials when the concentrate tank is dosing and the requirements on dilution at constant volume.
Our Solution-

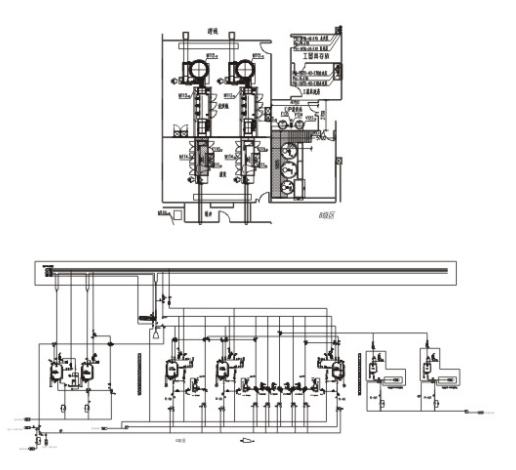

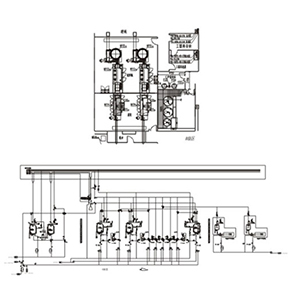

Graphic design plan -

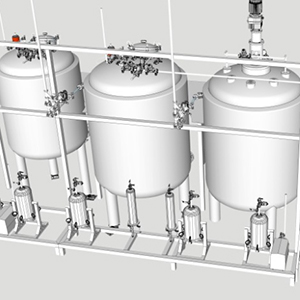

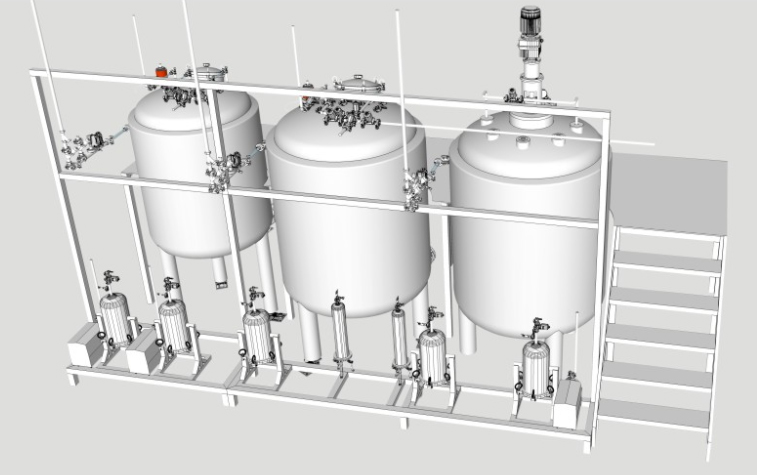

3D design -

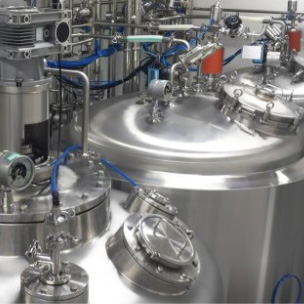

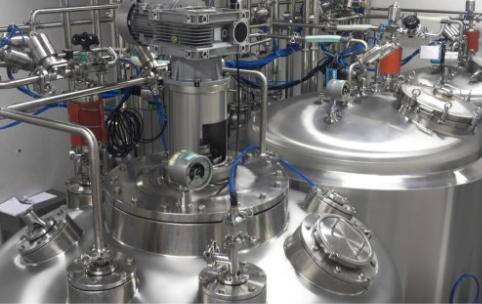

Working scene
LVP Processing Unit
- Concentrate tank
- Dilution tank
- Piping system
- Control system
- Equip the feed valve of the concentrate tank with control valve and install weight sensor module on the supporting leg of vessel to achieve precise control on weight of feedstock.
- The dilution tank uses magnetic mixer to control liquid to a constant volume and the degree of homogeneity.
- Carry out the SIP (sanitize in place) for in-line sterilization.
